Each Cache Manager maintains a list of File Server and Fileset Location (FL) Server preferences. Each entry in that list contains both the address of a server and a ranking. The ranking value determines the order in which these servers are accessed, or their "preference." The FLDB can contain up to four addresses for each server machine; therefore, the preference list can also contain up to four entries for each server (each with its own address and preference rank).
In operation, when a Cache Manager requires a particular fileset, it first consults its list of FL Servers and attempts to contact an FL Server at the address with the lowest ranking in the preference list. The FL Server provides the addresses of the various File Servers that contain that fileset. (The fileset location information is then cached by the Cache Manager and is updated periodically.) If the fileset is replicated, multiple File Servers may contain that fileset. The Cache Manager again consults its preference list and contacts a suitable File Server at the address with the lowest ranking value. Should the Cache Manager not be able to contact a server during this process, it simply checks its preference list and attempts to contact a suitable server at the next "most preferred" IP address.
The preference list is automatically created each time a Cache Manager is initialized. It consists of the IP addresses of FL Servers and File Servers and an automatically assigned preference value for each. New entries are added to the preference list as necessary when filesets are first required. By default, the Cache Manager assigns preferences that make sensible choices based on the location of servers. The default values make the Cache Manager try to connect to servers in the following order:
1. The same machine as the client (default rank of 5000).
2. The same subnetwork as the client (default rank of 20000).
3. The same network as the client (default rank of 30000).
4. Different networks (default rank of 40000).
Cache Manager preferences are explained in detail in the topic Configuring the Cache Manager.
For example, a server on the same machine as the Cache Manager receives a rank of 5000, while a server on the same subnetwork receives a rank of 20000. The entry with the lowest ranking value has the highest "preference." Thus, a server with a preference value of 5000 will be chosen before a server with a rank of 20000.
You can change Cache Manager preferences by using the cm setpreferences command. Additionally, you can create a file specifying server preferences that is read each time a Cache Manager is initialized, thus providing a method for overriding the default server preference values. You can also load preference entries from standard input, or any combination of all three sources. This is also explained in the topic Configuring the Cache Manager.
Should two servers be assigned the same preference value, such as two File Servers on the same subnetwork both receiving a default value of 20000, the server with the lowest round-trip value is chosen. Each server is assigned a random round-trip value when the Cache Manager is initialized. The assigned round-trip value is always higher than the upper bound for stored actual round-trip values. This ensures that an actual round-trip value will always be chosen over assigned values.
By judiciously providing multiple addresses for FL Servers and File Servers and properly configuring the Cache Manager preference lists, you can configure DFS to make the most efficient use of servers within the network. For example, you may wish to provide a connection from commonly used File Servers and FL Servers to the same subnetworks that are shared by the majority of the DFS clients. This reduces cross-router and gateway traffic through the network. As a backup, you can provide higher-ranking preference entries for server connections to other areas of the network. This provides continued access to the servers should a particular network connection become unavailable.
The following simplified scenario illustrates how multihomed servers can be configured to make the most efficient use of the local network. In this example, a read-only fileset is replicated on two File Servers. The File Servers have connections to both subnetworks within the network, and these connections are the preferred connections used by DFS clients on each respective subnetwork. When a DFS client must fetch data from the read-only fileset, it first consults the list of suitable Files Servers. The Cache Manager then consults its list of preferences and chooses the connection to a suitable File Server that has the lowest rank. Since both File Server connections on the local subnetwork have the same rank, the connection with the lowest round-trip value is chosen. This is shown in the following figure.

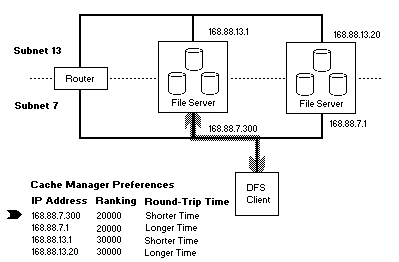

Cache Manager Contacting File Server Address With Lowest Rank
Should the Cache Manager lose contact with the preferred File Server connection (either through a network or server problem), the Cache Manager again consults its preference list and attempts to contact a suitable File Server at the address with the next lowest rank. This is shown in the following figure. In this figure, when the Cache Manager can no longer contact a File Server at a given connection, it attempts to connect to the File Server address with the next-lowest preference value.

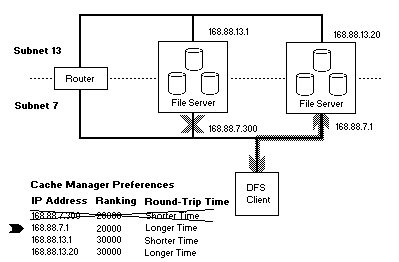

Cache Manager Connecting to File Server Address With Next Lowest Rank
If the Cache Manager again loses contact with a File Server through its current connection, it once more consults the preference list for the address of a suitable File Server with the next lowest value. In this case, the Cache Manager must now establish a connection to another subnetwork. There are two possible connections to suitable File Servers in that subnetwork, both having equal ranks. The Cache Manager therefore chooses the connection with the lowest round-trip time value. This is shown in the following figure. In this figure, should the Cache Manager again lose its connection, it checks the preference list for a connection to a suitable File Server with the next lowest ranking.

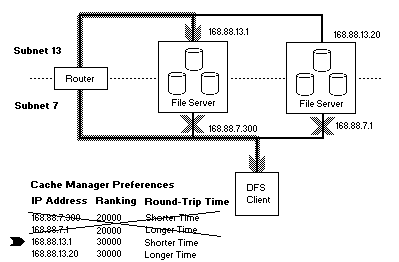

Cache Manager Again Losing Connection and Contacting File Server Address in Another Subnet
The entire process of changing connections as required is carried out automatically, without the DFS client users being aware that it has occurred.
